K2 Advantages

1、Robust Hardware

2、Ease of Use

3、Oven Setup Software

4、Viewing on Mobile Devices

5、24 Hour World Class Customer Support

6、KIC Profiler K2 datasheet

7、KIC Profiler K2 A4 size datasheet

New Generation Mid-Range Profile Setter

1、New generation profile setter replaces the last of KIC’s older technology profilers

2、Competitively priced for the -range market

Compact and Robust Hardware

1、The K2 will fit through the tight heated chambers often found in lead-free production

2、7 TC unit dimensions:

    206 x 60 x 17 (mm)

    Shield: 302 x 75 x 23 (mm)

3、9 TC unit dimensions：

    206 x 75 x 17 (mm)

    Shield: 312 x 90 x 23 (mm)

4、Durable hardware designed to withstand rough production environments

Fail-Safe Operation

Automatic start when temperatures are below a specified ‘start’ trigger, protecting the K2 and assuring consistent starting points and repeatable profiles

Hardware designed for accurate measurements

Engineer sets quality and productivity related parameters:

    PWI level

    Minimum/maximum allowable conveyor speed

    Maximum peak temperature,etc.

For use by reflow oven operators, technicians and engineers who need a reflow oven thermal profile

Reflow Oven Setup Software

KIC’s optimization software does a complete search for all possible combinations of oven zone temperatures and conveyor speeds. It s the very best oven setup for each new product within seconds
User able setup criteria focuses on positioning the profile towards:
the center of the process window
maximum conveyor speed
minimum oven electricity usage

Instant and Objective Profile Analysis

KIC’s famous Process Window Index (PWI) explains how the profile fits the established process window, with a single number:
PWI above 100 = profile out of spec
PWI at 100 = profile right on the spec limit
PWI below 100 = profile in spec
PWI at 0 = the exact center of the process window
Immediate profile analysis
Objective and personnel-independent profile analysis
Outlying profile data made visible

Accessing the K2 Profile Data on the PC or Mobile Device

The profile data can be displayed in two ways:
On the oven PC or profiling PC
On an Authorized Android mobile device
Convenient sharing function for ed profile data

Accuracy	± 0.5°C
Resolution	0.1°C
Internal Operating Temp:	0°C to 85°C
Sample Rate:	0.1 to 10 readings/sec
Data Points:	224,640
PC Connection:	USB 2.0 (Std-A/Mini-B)
Power Requirements:	(3) AAA batteries
Thermocouple Compatibility
7, 9 Channel Unit	Type K, Standard
Temperature Range:	-150°C to 1050°C
Dimensions (L x W x H mm):
7 Channel Unit:	206.0 x 60.0 x 17.0
9 Channel Unit:	206.0 x 75.0 x 17.0

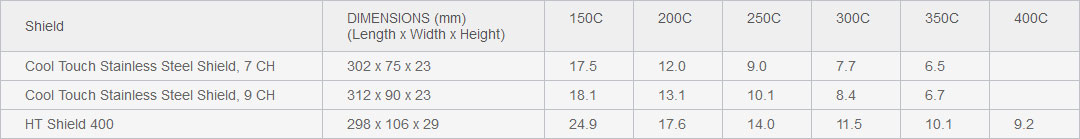

Thermal Shield:	See Temperature
Tolerance Table below for specifications.

Datalogger Model: data are downloaded to the computer through a USB cable after the run.
KIC’s Mobile Profile Viewer is WiFi
and Bluetooth compatible.
Note: The KIC software may interface directly with some oven controllers, eliminating the need for manual setpoint data entry. Please consult your oven supplier for availability. The KIC software is dongle protected.

The Process Window Index

Profiling Reduced to a Single Number

The PWI measures the profile’s fit to the process window in a mathematical and objective manner by using a single number. This aids in optimizing the process by comparing and ranking alternative profiles in terms of their fit to the available process window. The lower the PWI, the more efficient and stable the process! (See the PWI data sheet for a detailed explanation)
